Forklift Mast Channel Steel mainly includes:

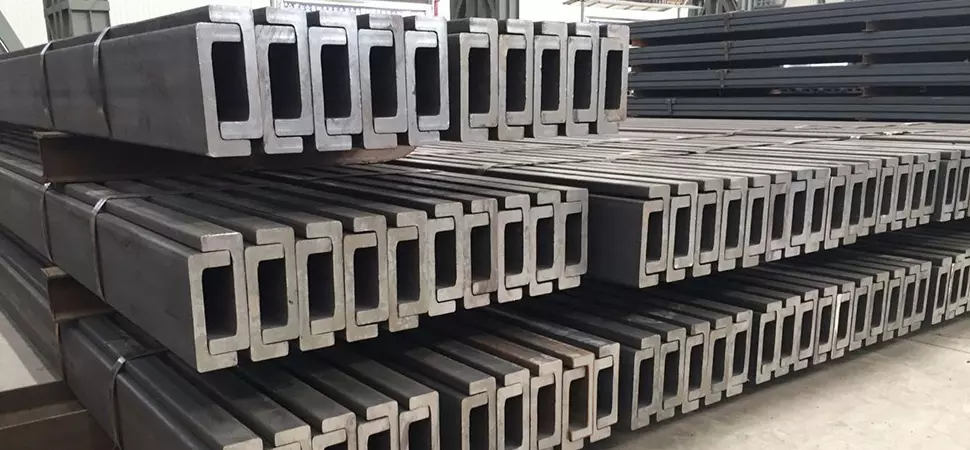

C-type forklift mast steel profile: 10C, C120 C140 C148 C160A/B C180b 20C 22C 24C 25C C164 M1C M4C M5C
J-type forklift mast section steel: J120 J148 J160A/B J180 M1J M2J

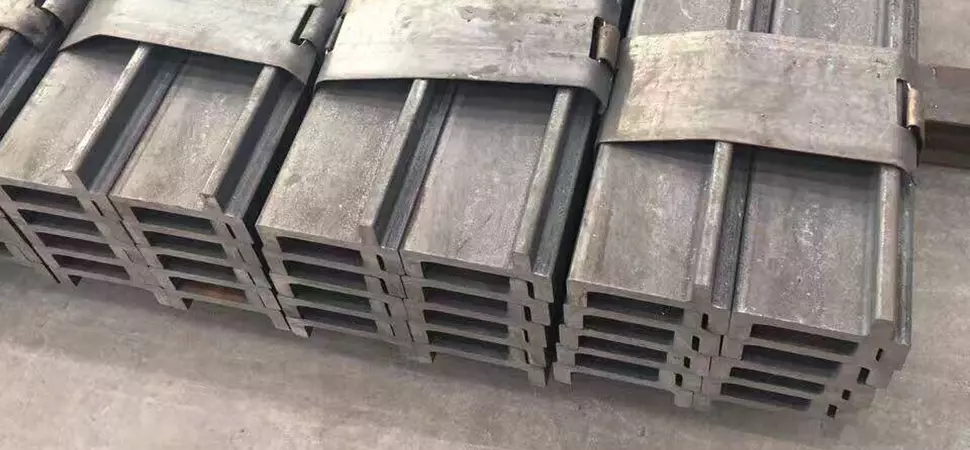

H-type forklift mast profile steel: 10h 12h 13h 14h M21 M31 M41 M51 C51
Forklift beam: 40*70 50*70 50*90 40*100 50*105 50*135 50*170 40*145 45*165 45*200 45*226

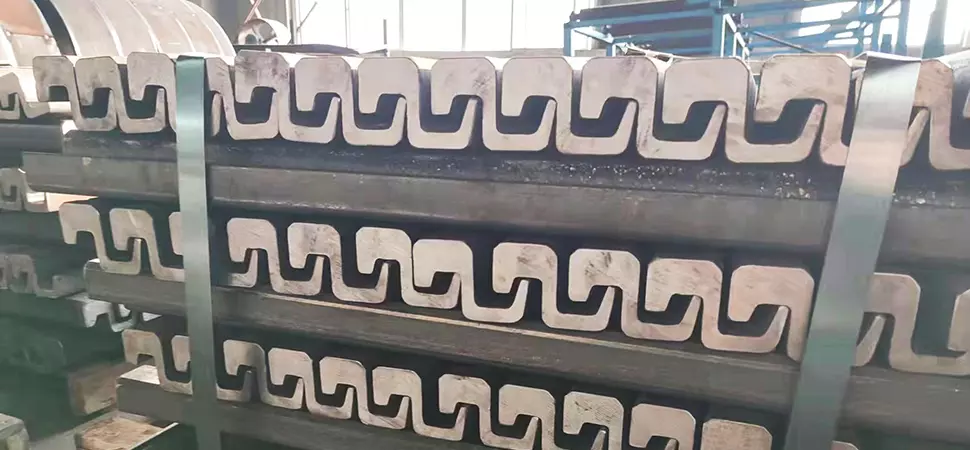

Other special-shaped steel: S-shaped steel, German standard 18mnnb6 forklift gantry channel steel, T-shaped steel, etc
The channel steel of C-type forklift mast is in sufficient stock, which can be cut in one piece. The products are formed in one time by hot rolling, and the overall quality uniformity can effectively reduce the complexity of forklift mast fabrication and improve the production efficiency of forklift manufacturers.
This product is mainly used in the forklift manufacturing industry. It is mainly used to make the mast of 1 ~ 5t forklift. It is used as the inner and outer mast of forklift lifting parts. Its flatness and dimensional tolerance are very important to the stability of roller travel and the overall quality of forklift. It directly affects the service life of gantry rollers, pulleys and lifting cylinders. It is an important indicator to measure the poor quality of forklift trucks.

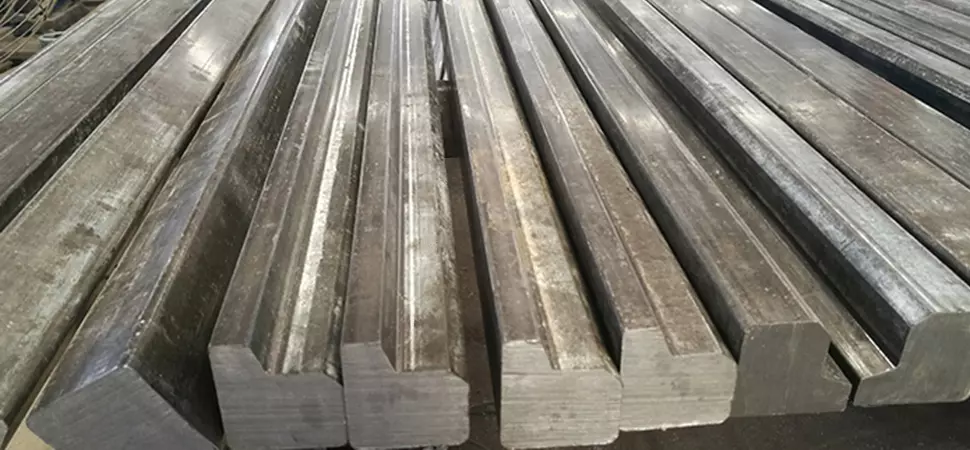

Forklift S-shaped steel: forklift is a hot-rolled profiled steel for side positioner.
Product usage: forklift is used for tools. The distance of forklift is adjusted by the piston movement after the oil cylinder and forklift are fixed. Make sure that the forklift moves horizontally as a whole, and the relative position of the forklift increases and decreases.
Material: Q355.
Specification: 1.5T, 2T, 3T, 5T forklift accessories.
Hot rolled special-shaped steel for forklift door frame, which is mainly welded on the side of C-shaped steel of forklift door frame.
Specification: 16x36,20x38.
Material: Q355.
Length: 6m,7m fixed length.
Henan Rarlong Steel Co., Ltd.
Customzied hot rolled and cold drawn special steel profile complex section steel
